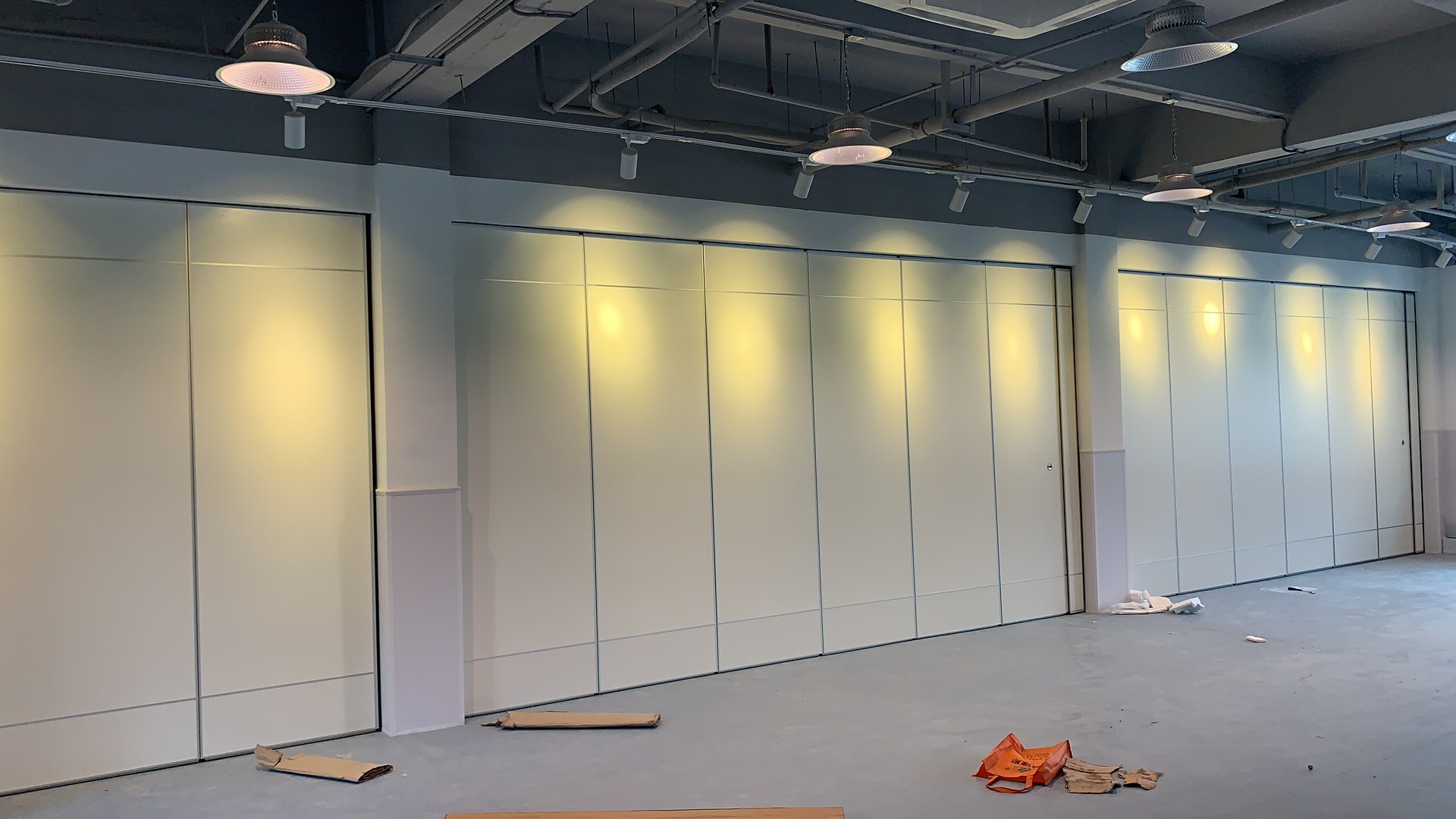

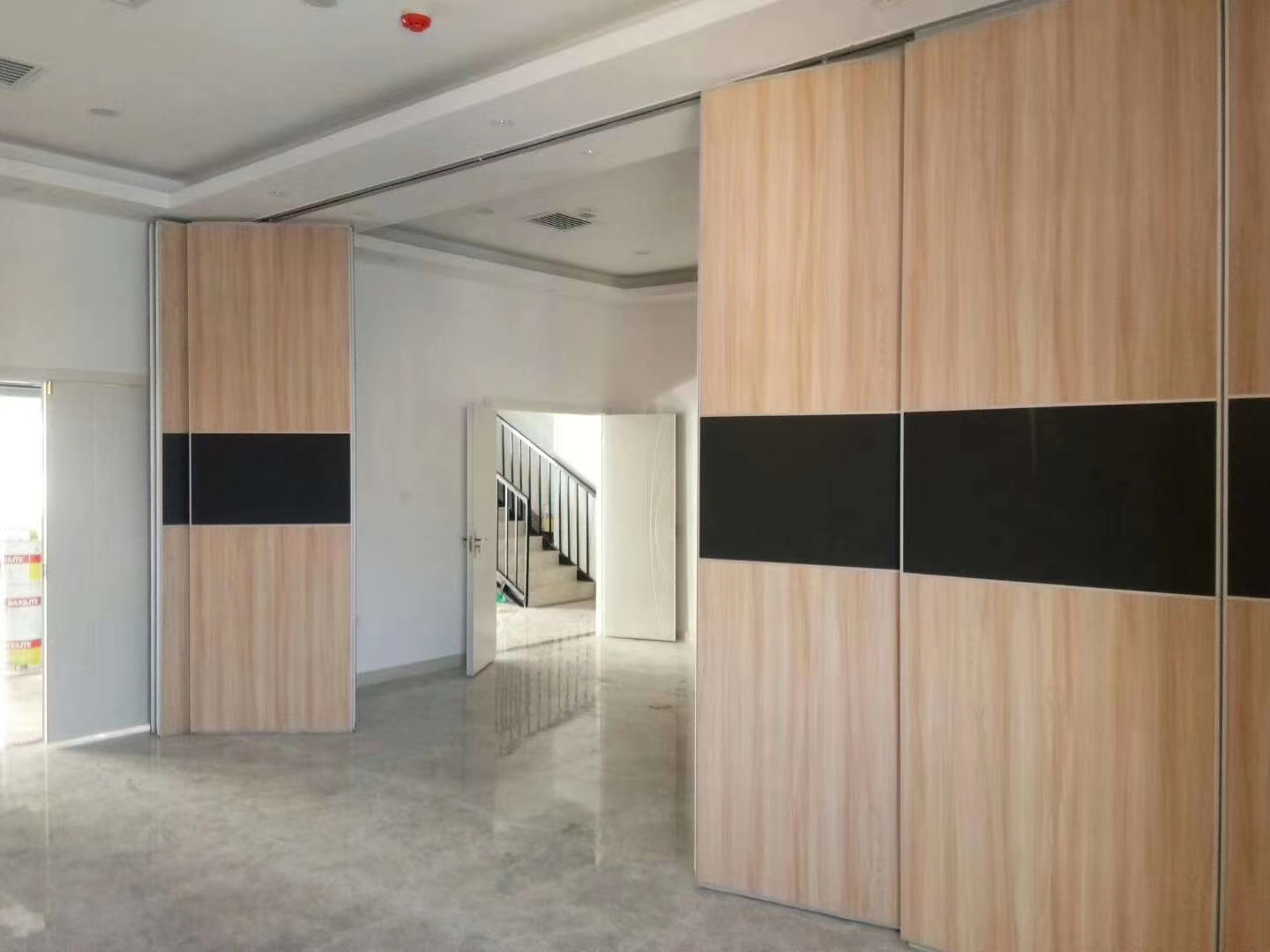

GLS-U Utral High mobile partition
Super high partitions are an ideal sight and sound divider for high ceiling rooms that require frequent flexibility in space division.
GLS-U Utral High mobile partition
1.Frame thickness : 100 mm
2.Height : up to 17000 mm
3.STC : 45-55 dB
4.Top supported without floor track or guide
5.Single door or double doors in partition
6.Clear anodized extruded aluminum track and frames, customized powder coated color are available
GreatFold Technical Description Feature
1. Top hung with no floor track required
2. High acoustic ratings up to 55dB available
3. Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle
4. Single or twin point suspension for central or offset stacking options
5. Variable track arrangements
6. Junction panels enable corner, three or four way abutments
7. Panel finishes include Melamine Laminate, Veneer, Vinyl, Magnetic Dry Wipe Whiteboard or
Painted, etc
8. Optional inset pass doors, fully glazed panels and vision panels
9. Closure panel fitted with face operated telescopic “nose”
Perfect packing and 3 years warranty for panel,5 years warranty for accessories
Surface Material:
Available in wide range of finishes: MDF, Melamine Board, Soft case, Hard case etc.
GreatFold finishes palette is available on request. Colors here shown as an example, may vary due printing process or production.
Melamine board-Cream Melamine board-Fabric Color Melamine board-Walnut
